Tutorial: Data Visualisation for Print

- January 13, 2014 in Data Journalism, HowTo, Visualisation

Let’s say you want to produce a Bubble Chart, Dendrogram or Treemap out of some data you have. You also need to be able to manually edit the output visualization, retouch it and have the ability to export it into larger resolutions for your printed newspaper or posters.

Creating The Charts

We decided to use RAW (http://app.raw.densitydesign.org/) here for two main reasons:

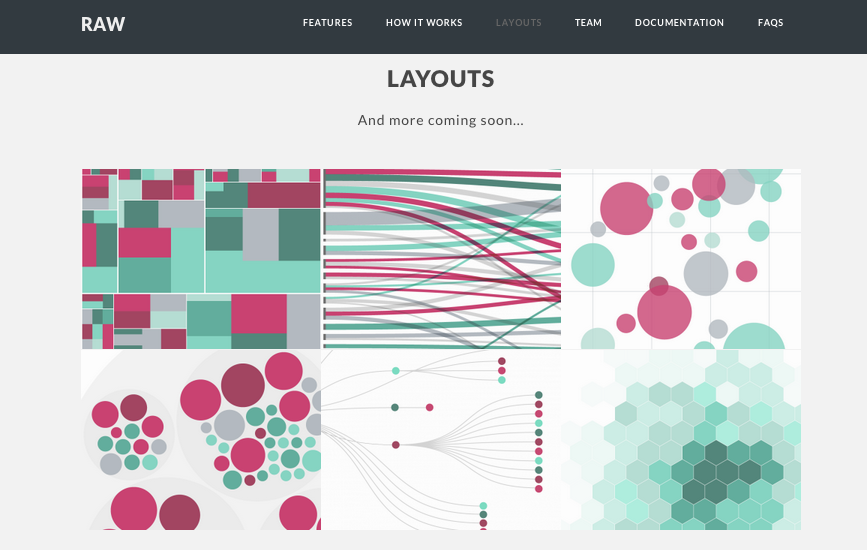

  1. RAW is an online tool that is capable of producing non conventional charts such as Dendrograms, Treemaps, Hexagonal Binnings and Alluvial Diagrams.
  2. The output charts from RAW are easily exported into SVG format. Scalable Vector Graphics (SVG) is an XML-based vector image format. Vector images are composed of a fixed set of shapes, as opposed to raster or bitmap images which are composed of a fixed set of dots. This results in preserving the shapes with high resolution when scaling your image, unlike bitmap images which are usually pixelated when scaled up. We also will see later on that having each shape as a standalone element in the image, gives us more flexibility in editing each shape within our image on its own.

One more reason for using RAW, that might be appealing to the hackers among you, is that it is an open source project, and anyone with programming skills can easily add more layouts and features to it.

In our example here, we are going to use the results of the Egyptian referendum in 2011. We formatted the results and saved them in the following spreadsheet.

Go the the spreadsheet,  and copy the data in the 3rd worksheet. The worksheet is called “Votes, Area and Population”. Now go to RAW and paste the data there.

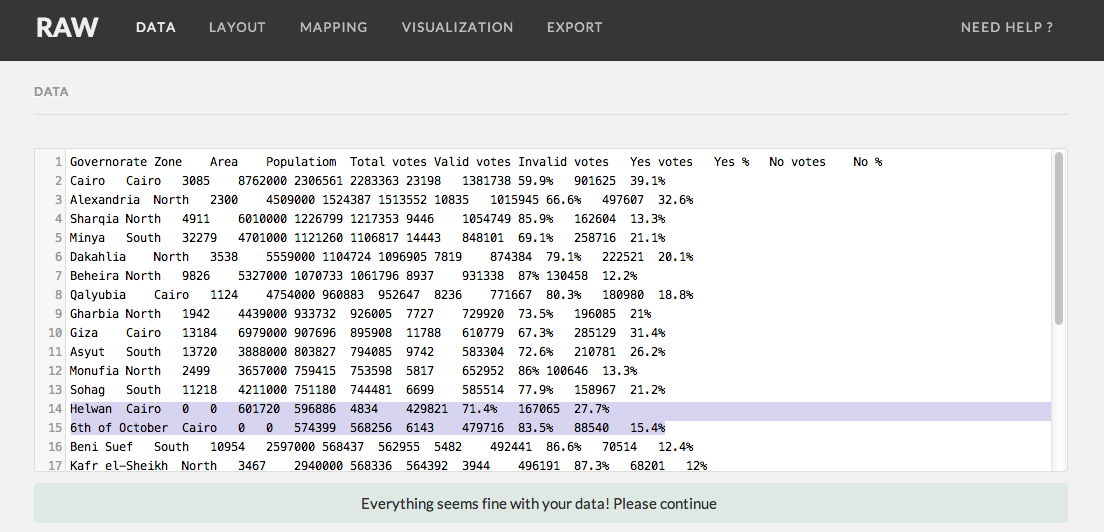

Once you paste the data you will see a message there that says, “Everything seems fine with your data! Please continue”. We are now sure that everything is fine so far. You may delete any rows that you do not like to have in your final chart. One important note here, you have to make sure that you have a header row in your spreadsheet, i.e. the first row should contain the name of each column of your data.

Now we are all set to scroll down.

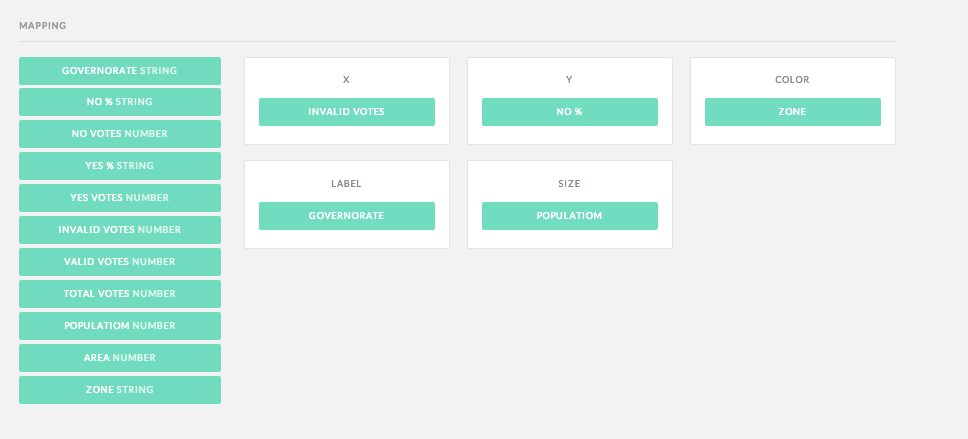

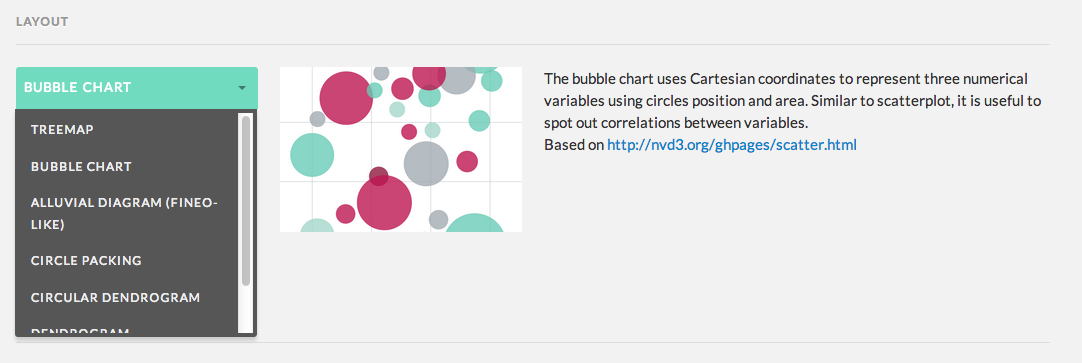

After scrolling down, you will be given a drop down list to choose the layout you want from it. We are going to choose “Bubble Chart” here.

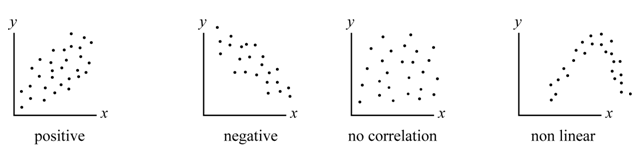

Scatter plots are meant to show the relationship between two variable. One variable is represented in the x-axis while the other is displayed in the y-axis.

Bubble charts are similar Scatter plots, yet they can represent one additional variable compared to scatter plots. One variable is represented in the x-axis while the other is displayed in the y-axis, and the third variable is represented by the size of the bubbles in the chart.

Let’s say we want see if there is a relationship between the percentage of the invalid votes and those who voted with no. We want to see if those who are against the referendum were divided between voting with no and invalidating their votes. Thus we are going to drag and drop those two variables into the x and y boxes. We drop the population into the size box so that the sizes of our bubbles are proportional to the population in each governorate. The labels are matched with the governorates, and we divided Egypt into 5 zones and made sure that the bubbles for the governorates within the same zone are given the same colour here.

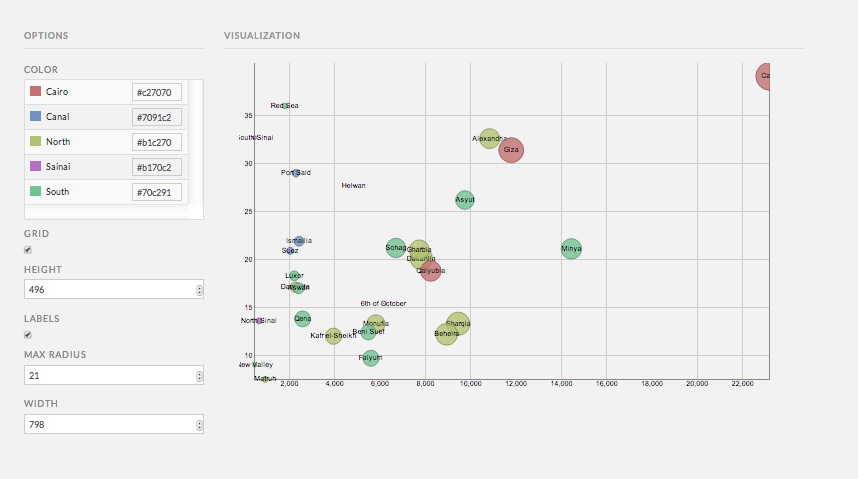

Now if we scroll down we are going to see our bubble chart ready. We are given the option to change the colours assigned to each zone in Egypt. We also set a maximum radius for our bubbles. Setting the radius to a very small number will convert the bubble chart into a scatter plot. Finally, you can set the width and height of your canvas and decide whether you want to see the horizontal and vertical grid lines there or not.

If you are happy with the final appearance of your chart, then you are now set to export it into a SVG, PNG or JSON file. You are also given the SVG code in case you want to embed the drawing into the your webpage or blog post. Just copy the code shown in the “Embed in HTML” box and paste it into your blog and the chart should appear there.

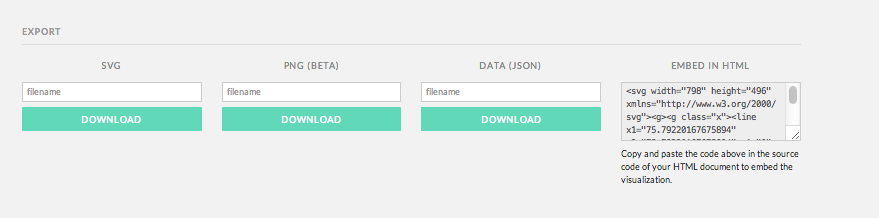

For our example here, we need to export the chart into a SVG file to be able to deal with it in InkScape later. Thus, we shall now write a proper filename, let’s say, ‘egypt-votes’, in the box underneath the SVG title and click on the download button to save it on our computer.

Preparing the SVG File for Print

We now need to download InkScape from its website (inkscape.org). InkScape is a Free and Open Source tool for dealing with vector graphics. There are plenty of educational screencasts and videos about InkScape here. InkScape is similar to Adobe Illustrator, Corel Draw, Freehand, or Xara X, however the latter are not free softwares. In the end, it is up to you to use whichever vector graphics editor you feel comfortable with.

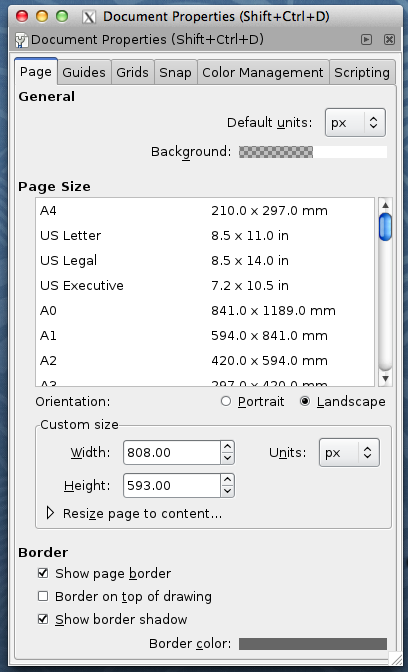

Now that we have installed InkScape, and saved the chart produced by RAW on our computer into the following file, “egypt-votes.svg”, we can open the file using InkScape.

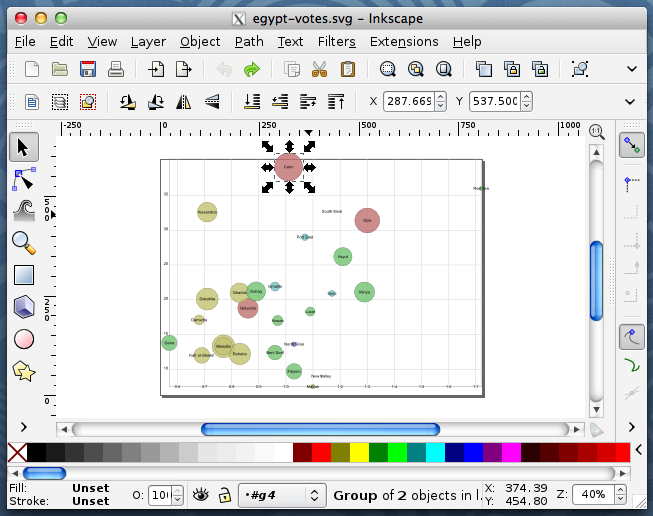

In InkScape you can select any object within your chart, resize it, change its colour, move it around, edit the text in it, etc. After double clicking on the element you it will get selected, now you can resize it using the 8 arrows shown around it, you can also drag it to a different location in your canvas, and to change its colour, by clicking on any of the colours shown in the pallet below while having your object selected.

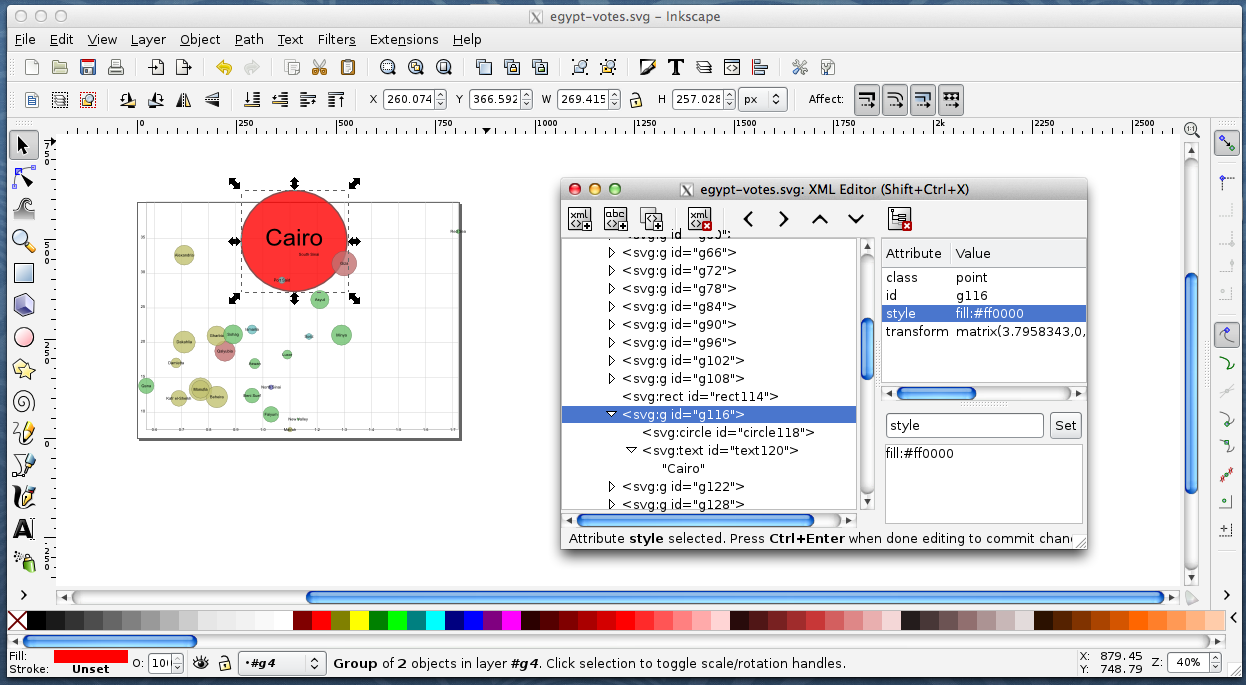

The advanced users can also open the the “XML Editor” from the “Edit” menu and edit the SVG elements of the chart like they edit any XML file, as long as they understand the SVG format. You also can add additional elements and text to your chart if you want.

As stated earlier, it is easy to resize the SVG files without sacrificing the quality of the image. In order to use our chart in print, we may want to have it in larger sizes. From the “File”, menu open the “Document Properties”. There, you can pick one of the predefined page-sizes, for example, if you know that you are going to print your chart on an A1 page. Also, you can manually enter a custom size for your chart, then can save your changes now and we are done.

Finally, if you want to send the chart to another user or software that is not capable of dealing with vector images, you can export it into a more common format such as PNG, using the “Export Bitmap” option in the “File” menu.

Flattr this!

Mozilla Popcorn Maker

- December 19, 2013 in Data Journalism, HowTo, Storytelling, Visualisation

As a journalist or blogger, you usually make use of lots of online videos and audio recordings on YouTube, Vimeo or Soundcloud. However, you may need sometimes to embed your own annotations, graphs or maps on top of those videos. Popcorn Maker allows you to add those content into the videos and control where and when they should appear there.

The Time magazine published a video containing 5 inventions that they consider the top 5 inventions of 2013. Let’s take that video as an example here and see how we can embed annotations and other multimedia content in it.

You first need to go to https://popcorn.webmaker.org/, and sign in there. The signup process is easy and you normally do not need to create a password or anything.

After clicking on the sign in button, you will be asked to enter your email address. If you are using an email from one of their Identity Providers, such as Gmail or Yahoo Mail, then you will be taken to your email provider’s login page to login to your email account then you will be redirected back after being authenticated. In case you are using an email provider that is not known to them – e.g. [email protected] – then you will need to create a new password on Mozilla persona.

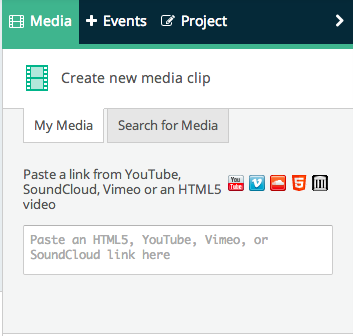

After logging in, you need to add the url of the YouTube video to the Popcorn maker. Links are added in the “Create new media clip” media section. You can add more than one video or audio links. If you have worked with other video editing tools, such as Windows Movie Maker for example, you will notice many similarities in the process of adding multiple media files and arranging them to work in the order you want. You also can cut and paste parts of the videos you add and reorder them, or use the audio of a SoundCloud file and make it the soundtrack of your YouTube or Vimeo video.

Now after we add the URL of the Time magazine’s video, and clicking on the “Create clip” button, the video will appear in the “My media gallery” section. The media gallery is a sort of repository where you can have all your media files. To start working with the media files you have, you need to drag them into the layers section at the bottom left side of the Popcorn Maker page.

You can think of Popcorn layers as those layers you see in Photoshop, GIMP or in Windows Movie Maker. The horizontal line shows the timeline for which item(s) are to be played at each point in time, while the vertical layers control which items to appear superimposed on each other. For example, if you are having two media items, media1 and media2. If you need them to appear one after the other, you can add them both in the same layer while making sure that the second one starts only when the first one is finished, but if you want the audio of one item to appear along with the video of the other item, then you need to place them in two separate layers and make them start at the same time.

In the image above, we are having two layers, with our video in layer 1, while layer 0 contains a text item.

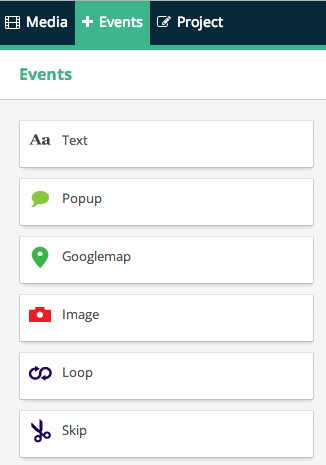

In order to add the above text item, we need first to click on the “+ Event” tab on the right, then click on text. A new text item will then be added to layer 0, and you will be given some fields to fill for that new item. The most important field of course is the “text” field, where you can write what to be written in your new text area. You can also set the start and end time for its appearance on the screen, or you can do the same thing by dragging and resizing the text item shown in layer 0. You can also change the text’s font, size and colour. In our case here, we added the following text in the beginning of the video, “Time’s Best Inventions of 2013”, then we moved the video item a bit to the right to appear right after the text disappears.

To edit any item you have, just click on it in the layers pane and its settings will be shown in the Events section on the right. To delete an item, just drag it to a new layer, and then delete that layer.

In the minute, 1:25, they speak about the invention of invisible skyscrapers in South Korea. So, let’s show a map with the location of South Korea on top of the video then.

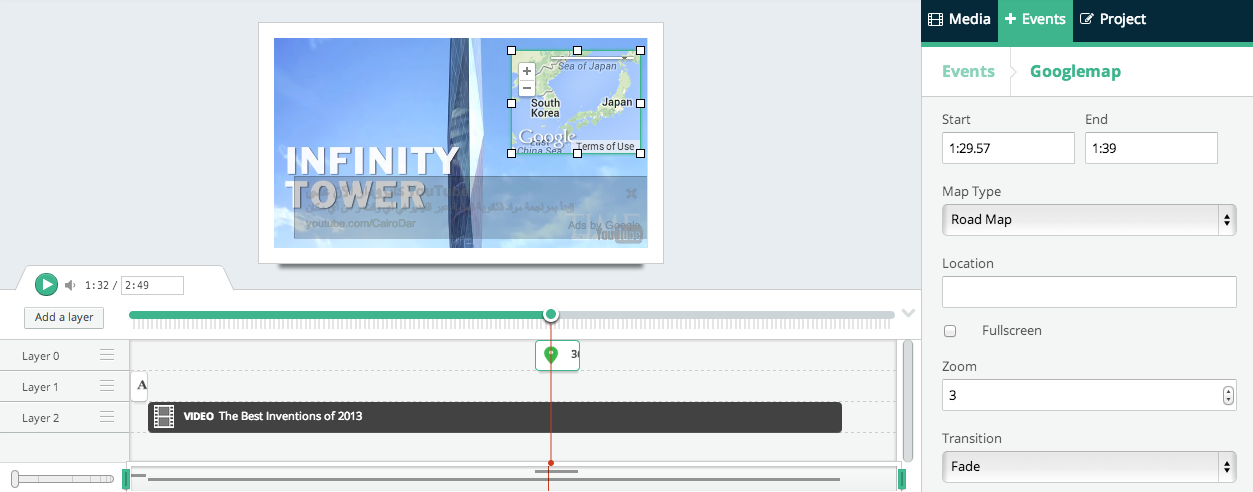

We first need to click on the “+ Event” tab on the right, then click on the “Googlemap” item. This time a map item will be added into a separate layer. We already start the video 4 seconds late after the introductory text. Thus, we need the map to appear at the minute 1:29 (1:25 + 0:04). Let’s type in that value manually, and also let’s keep the map on screen for 10 seconds. In the location field let’s type “South Korea” and set the map type to “Road Map” and the zoom level to 3. We then can change the size and the position of the map item on the screen by dragging and resizing it. We also can double click on the map item to manually change its pan and zoom.

In a similar fashion to adding Text and Google Maps, you can also add images, speaker popups, and  3D models from Sketchfab. You also should find it easy to pause and skip parts of your embedded multimedia content.

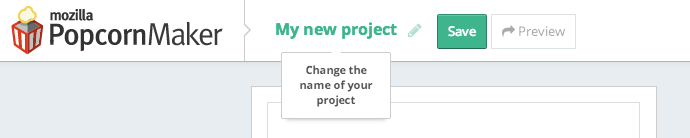

When done, you need to give your project a name then click on the save button as shown above.

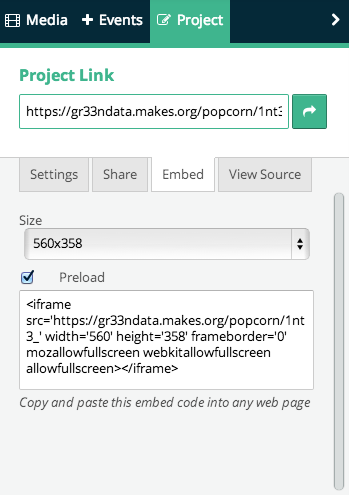

Finally, here comes the fun part where you can embed the output video along with the interactive multimedia on top of it into your own blog or journal. To do so, you have to click on “Project”, then copy and paste the HTML code shown in the “Embed” tab into your own blog or web page.
